The easy to handle shoring construction kit for truss girders, shoring towers and pedestrian bridges

ALPHAKIT

The easy to handle shoring construction kit for truss girders, shoring towers and pedestrian bridges

ALPHAKIT is the new construction kit for shoring solutions up to 30 m height and bridging spans of 27.75 m.The system makes an impressive case due to its fast assembly procedure thanks to the proven fitting pin connections.

Assembly and dismantling work can take place either vertically or horizontally, and you can even transport the system safely by crane or on a trolley with winch unit.


  • Easy pre-assembly without a crane

    With easy to handle, lightweight  individual  components

  • Fast and safe assembly

    due to high load-bearing connections with a maximum of 2 Fitting Pins and Cotter Pins per connection

  • Few core components

    Few core components
    and a variable range of applications make the system simple and cost-efficient.

ALPHAKIT in action

  •

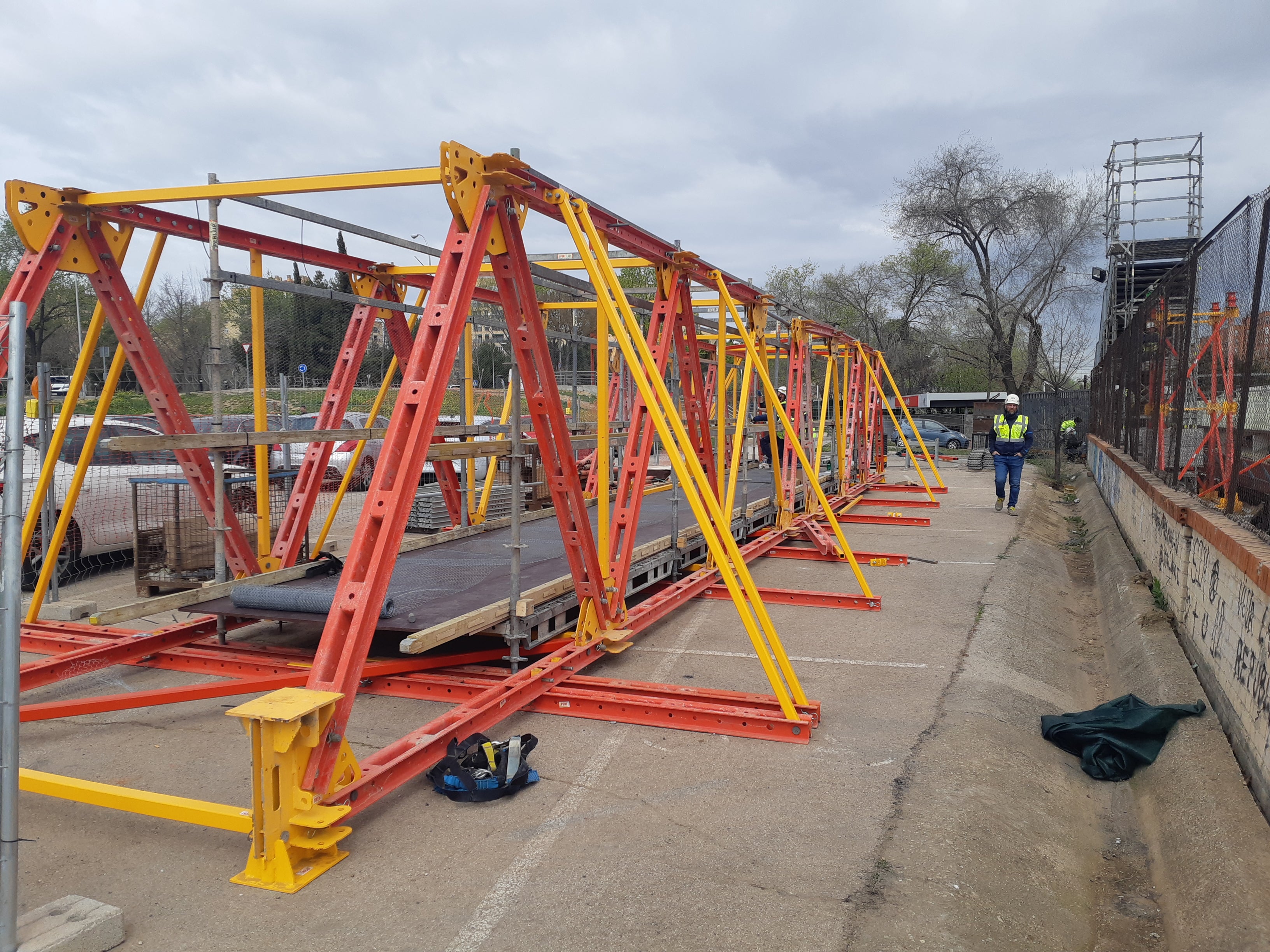

Due to the lightweight steel components, no crane is required for pre-assembling the towers and girder packages. Moreover, thanks to the light and thus ergo-nomic individual components, assembly can be completely carried out without any lifting gear, only by hand.

    Due to the lightweight steel components, no crane is required for pre-assembling the towers and girder packages. Moreover, thanks to the light and thus ergo-nomic individual components, assembly can be com-pletely carried out without any lifting gear, only by hand.

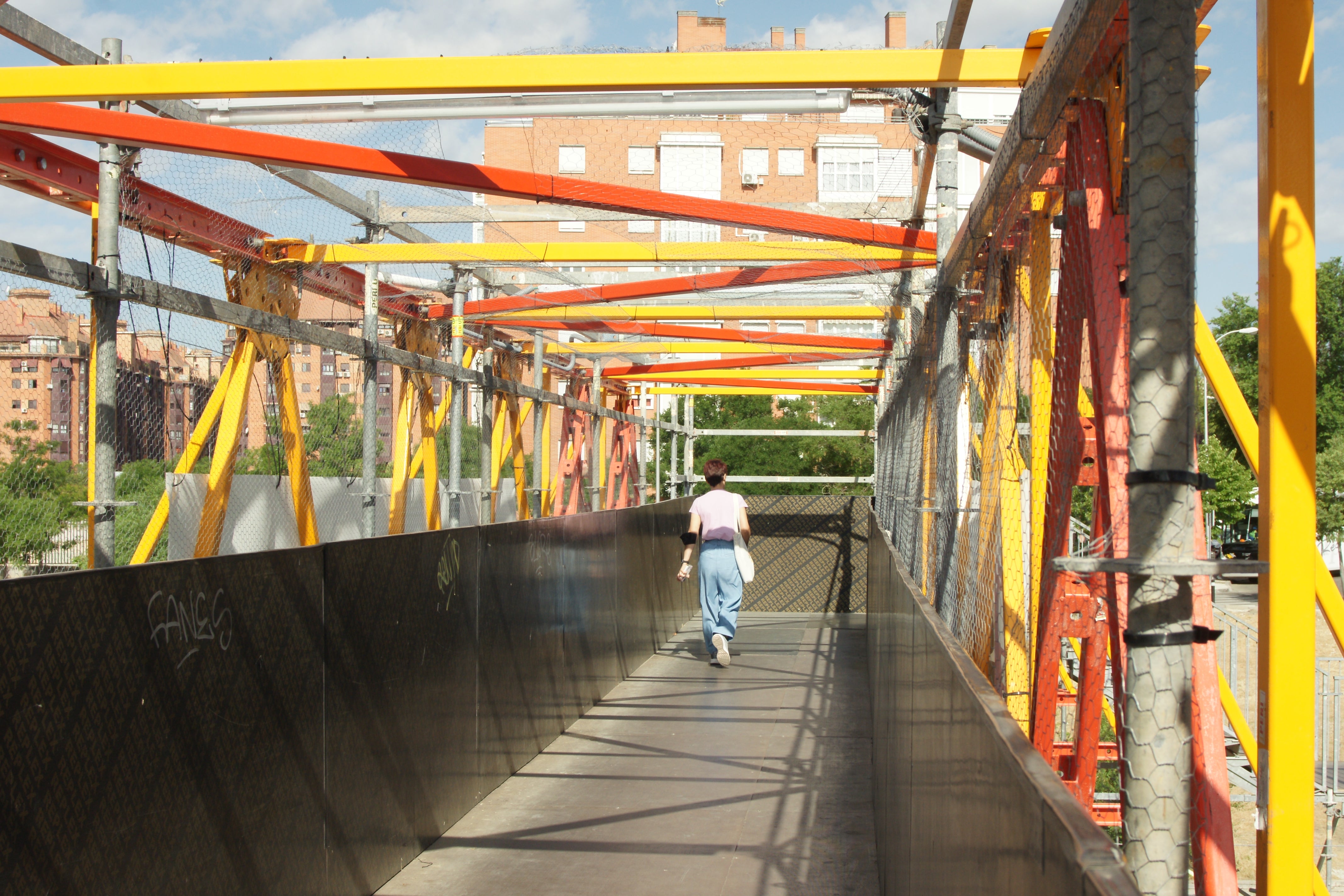

  • The ALPHAKIT pedestrian bridge serves as temporary shoring for allowing pedestrians to cross an obstruction.

    The ALPHAKIT pedestrian bridge serves as temporary shoring for allowing pedestrians to cross an obstruction.

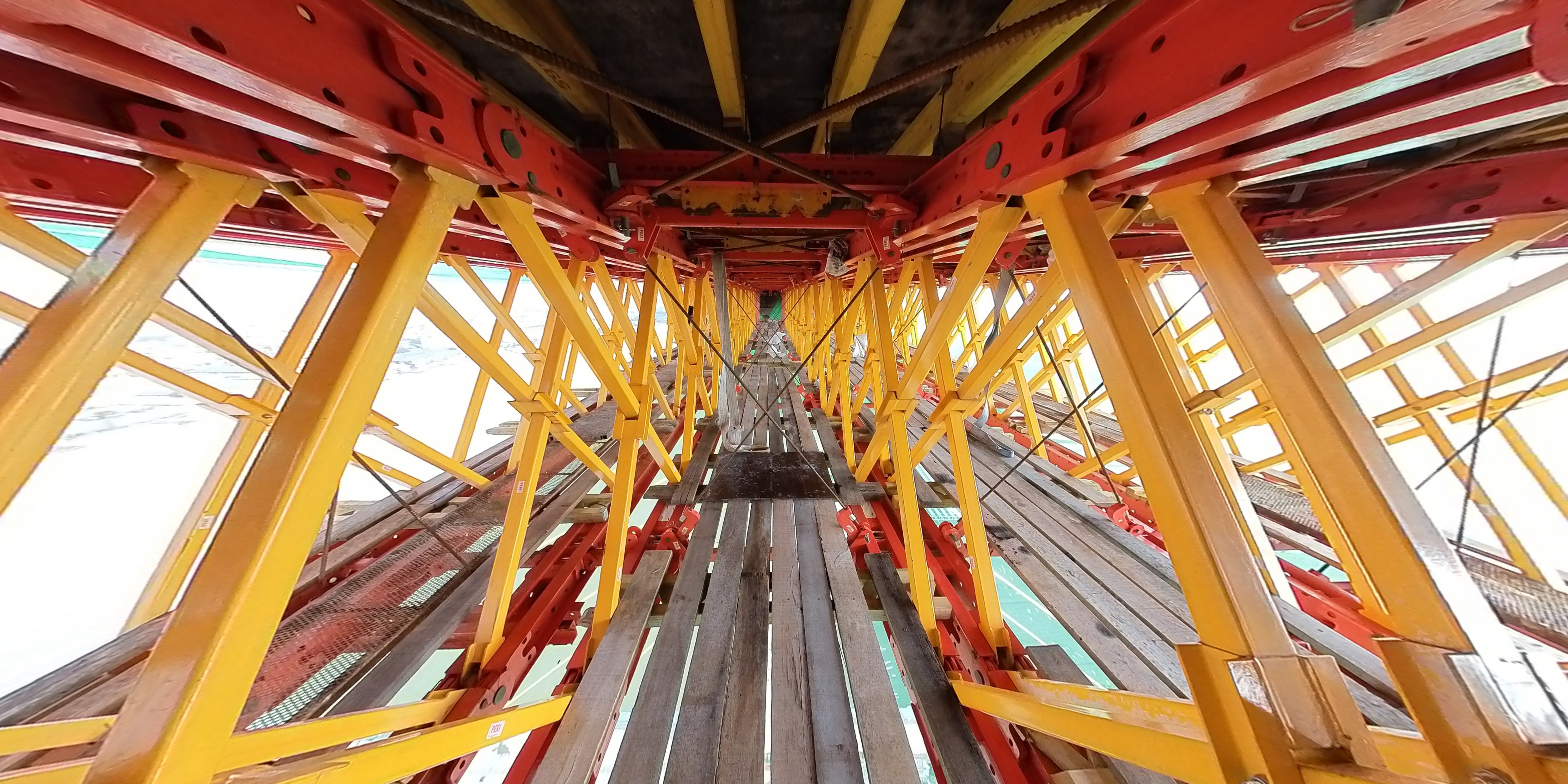

  • The variable range of applications make the system simple and cost-efficient

    The variable range of applications make the system simple and cost-efficientesign

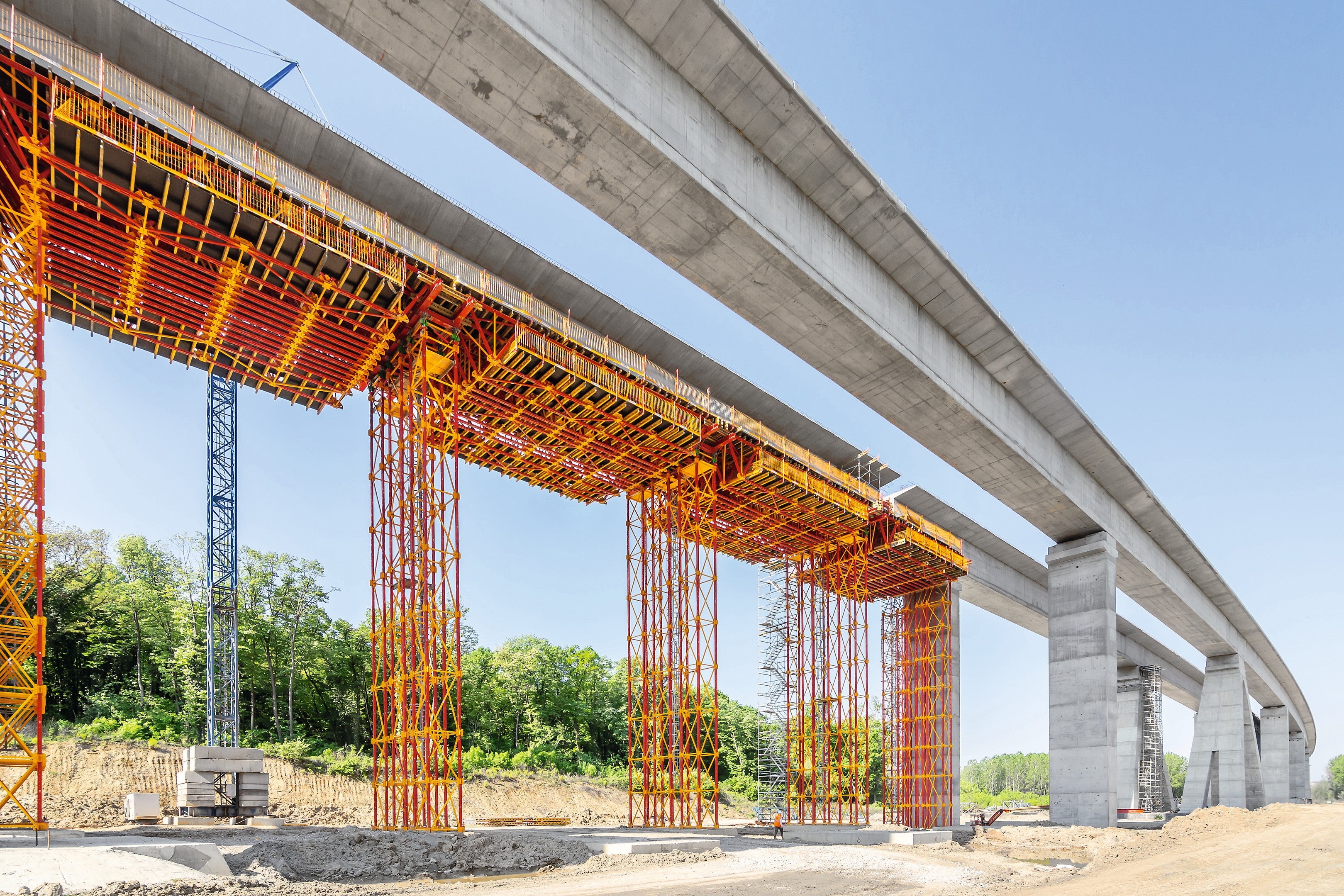

  • The ALPHAKIT Truss Girder serves to transfer loads from in-situ con-crete or prefabricated components in bridge and building construction.

    The ALPHAKIT Truss Girder serves to transfer loads from in-situ con-crete or prefabricated components in bridge and building construction.

Product Data Sheet

Related Products

Downloads

See our brochures below

Projects

The easy to handle shoring construction kit for truss girders, shoring towers and pedestrian bridges

Interested in using ALPHAKIT for your project?

Call us on 021 880 7777 to discuss your requirements further.
