Lightweight panel formwork for building construction and civil engineering

DOMINO Panel Formwork

The compact wall formwork for a wide range of uses in general construction and civil engineering

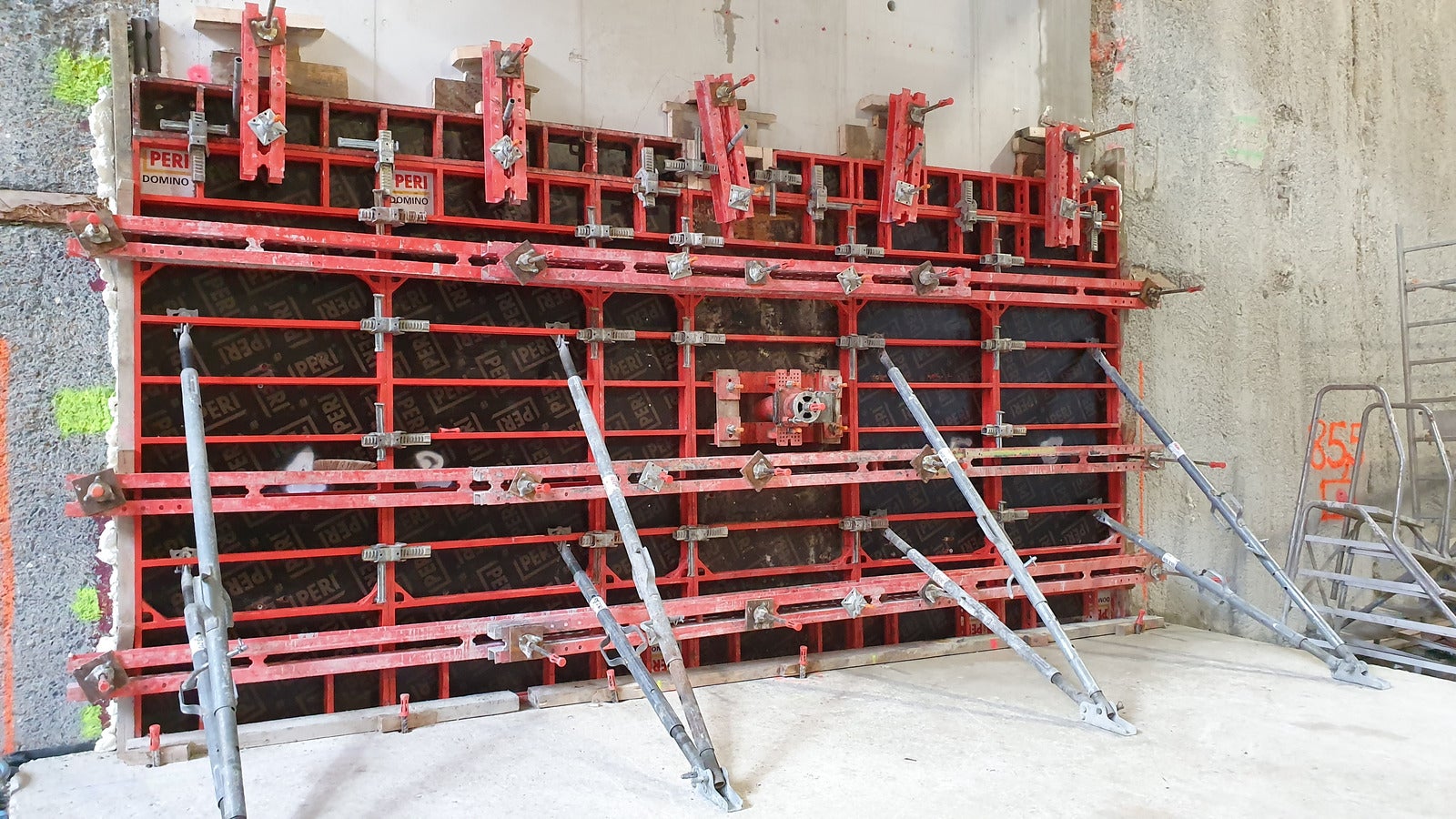

DOMINO is the lightweight, movable by crane panel formwork with compact dimensions. The system is particularly suitable for residential and civil engineering projects as well as construction in existing buildings. Through the inset tie points, sleeve foundations, parapets, retaining walls and beams can be quickly and easily formed. If no crane is available, the DOMINO Alu version is used. The DRS Alignment Coupler ensures flush, aligned and tight panel connections.

DOMINO in action

Ideally suited for foundations

due to inset tie points and matching accessories.

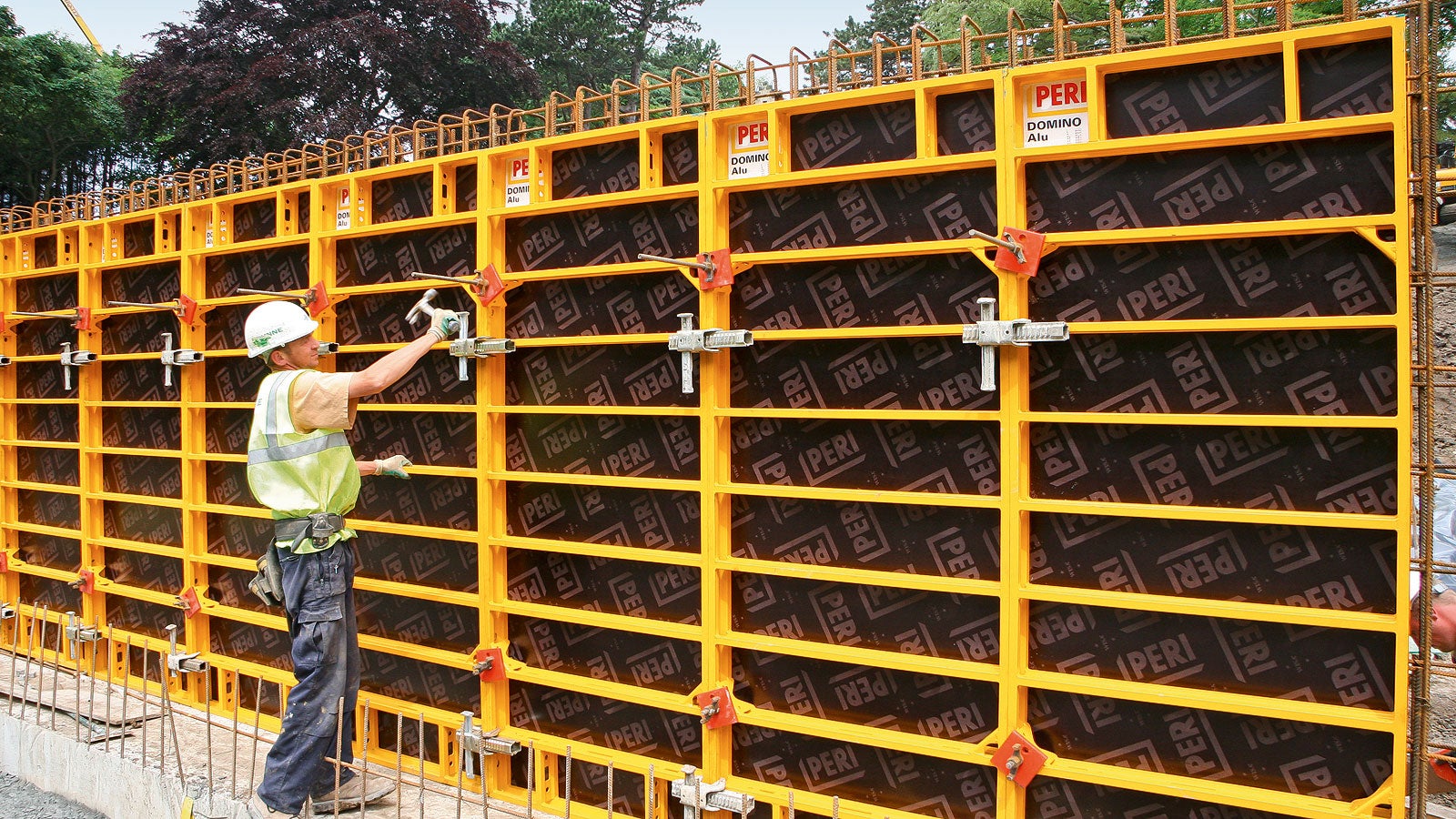

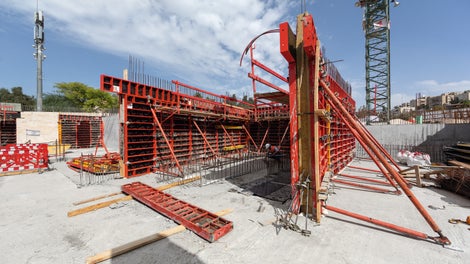

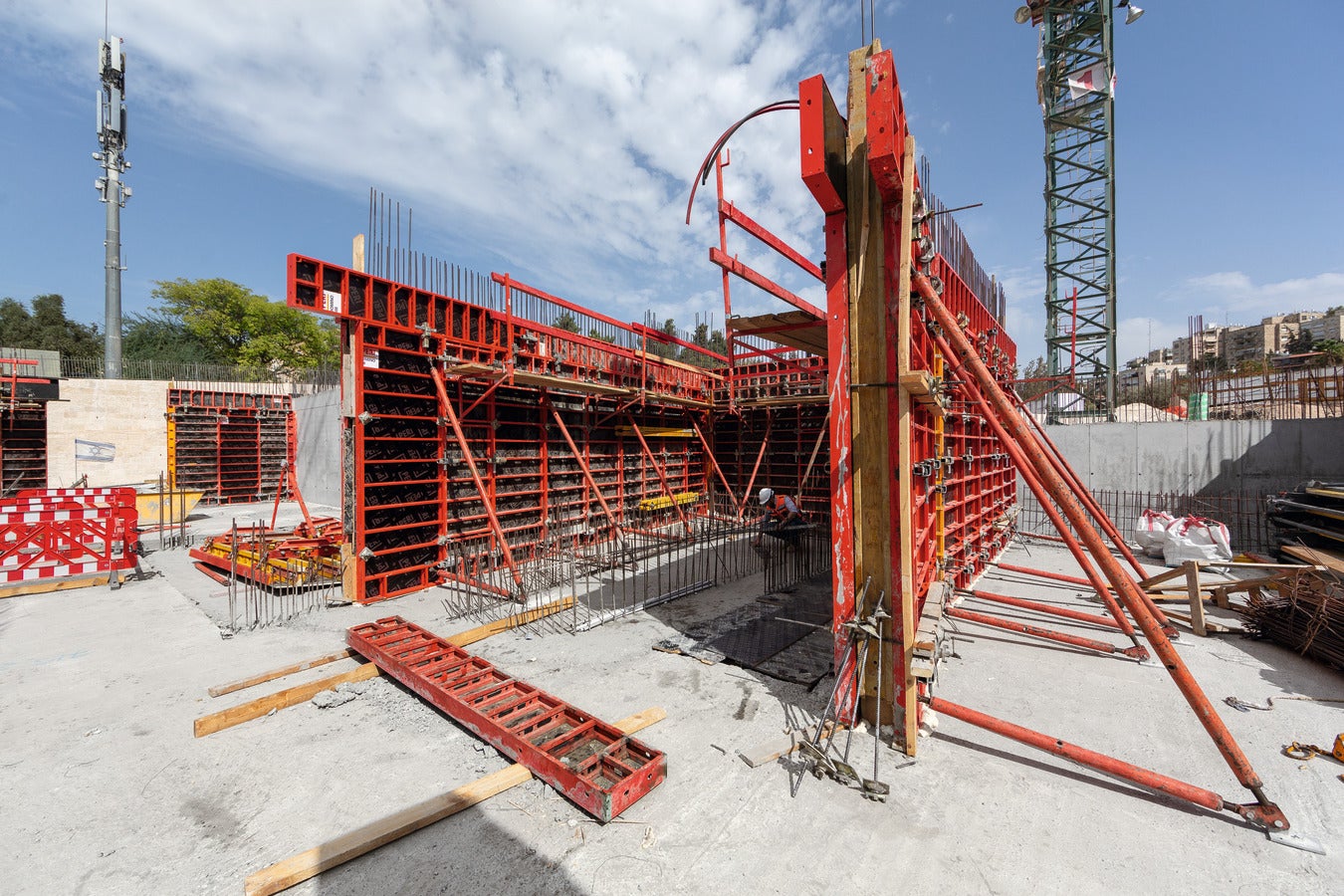

Easy and simple handling

DOMINO panels are extremely light but nevertheless still have a high load-bearing capacity. The aluminium 250 x 100 panel only weighs 59 kg.
Fast panel connections

with the DRS Alignment Coupler as the only component for all panel connections.

Product Data Sheet

Technical specifications

System type

Panel Formwork

Dimensions

Element heights: 0.75 m | 1.25m | 1.50m | 2.50m | 3.00m,

Element widths: 0.25 m | 0.35m | 0.50m | 0.75m | 1.00 m

Fresh concrete pressure

60 kN/m² for steel elements, 50 kN/m² for aluminum elements (fresh concrete pressure according to DIN 18218)

Material

Steel or aluminium

Formlining

FinPly, 15mm

Anti-corrosion and surface coating

High level of corrosion protection thanks to internal strip galvanizing powder coating on the element frames prevents concrete from sticking and makes cleaning easier; Aluminum elements have a yellow powder coating

Fulfilled standard

Flatness according to DIN 18202, up to line 7

Technical specifications

System type

Panel Formwork

Dimensions

Element heights: 0.75 m | 1.25m | 1.50m | 2.50m | 3.00m,

Element widths: 0.25 m | 0.35m | 0.50m | 0.75m | 1.00 m

Fresh concrete pressure

60 kN/m² for steel elements, 50 kN/m² for aluminum elements (fresh concrete pressure according to DIN 18218)

Material

Steel or aluminium

Formlining

FinPly, 15mm

Anti-corrosion and surface coating

High level of corrosion protection thanks to internal strip galvanizing powder coating on the element frames prevents concrete from sticking and makes cleaning easier; Aluminum elements have a yellow powder coating

Fulfilled standard

Flatness according to DIN 18202, up to line 7

System accessory

Tie technology

Two-sided anchoring technique

Tie sealing technology

DK anchor technology

Connection technology

Alignment lock DRS or wedge lock KS

Safety

DOMINO console and counter railing
