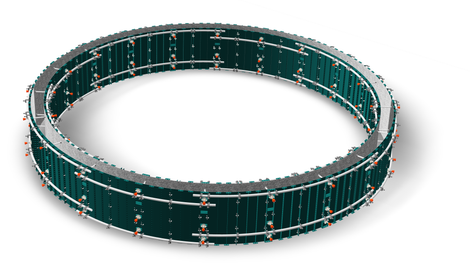

Simple and affordable solution to circular and curved formwork, light enough for man handling whilst durable, due to steel construction.

FLEXFORM

Simple and affordable solution to circular and curved formwork, light enough for man handling whilst durable, due to steel construction.

FLEXFORM  is the most cost-effective way to form curves and radial forms, being manufactured from steel adds to the durability of the system, along with the simple ‘T and Wedge’ connection allows for minimal training.


FLEXFORM in action

Simplicity in design

With only three panel widths, forming of circular structures are simplified, along with the perforated periphery, accessories are easily attached.

Make-ups

Filler panels are used on the outer form to accommodate the offset of the forms on the internal shutter.

Technical Details:

Panels available in 1.2m, 1.8m and 3.0m lengths and available in the following widths 30cm, 45cm and 60cm (additional lengths are available on request for sale)

Face plates are manufactured using 2mm plate, and the periphery punching matches that of the ECONOMY Form system enabling the two systems to be used together.

Radii of 3.0m to 20.0m can be realized with the FLEX Form system.

Panels are quickly attached using the “T and Wedge” connection whilst tubes are fitted to maintain the required curve or radii, using the convenient and simple ‘B – Clamp’
