PlasticTube Cones

Ferrule tube cones and DP Cones are used with ferrule tubes to seal tie rod holes in formwork, ensuring consistent wall thickness and a clean finish.

Plastic tube cones are used to seal off tie rod holes on the formwork face when inserting tie rods. They are used in combination with ferrule tubes and can be removed after casting, leaving a clean finish on the concrete surface.



Plastic DP Cones provide a deeper profile for plastic tube sealing, allowing for easier removal and cleaner concrete finishes. Designed for use with 22/25 mm ferrule tubes, these cones deliver a professional finish in exposed concrete surfaces.

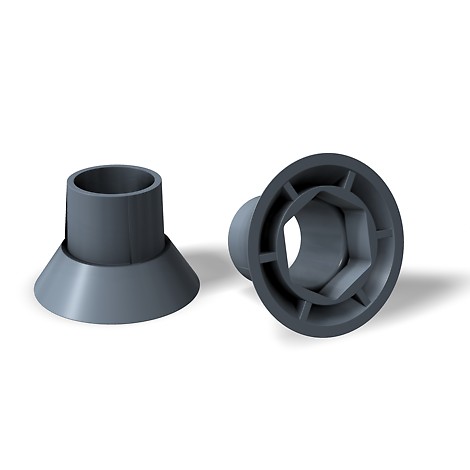

Ferrule Tube Cones

Key Features

  • Used with ferrule tubes to seal tie rod holes

  • Provides neat and removable hole closure after casting

  • Ensures consistent wall thickness

  • Easy to install and remove

  • Durable and reusable

Available Variants

  • 17 mm tube ID — 20 mm tube OD — 1,000 pcs/pack

  • 22 mm tube ID — 25 mm tube OD — 1,000 pcs/pack

  • 26 mm tube ID — 30 mm tube OD — 1,000 pcs/pack

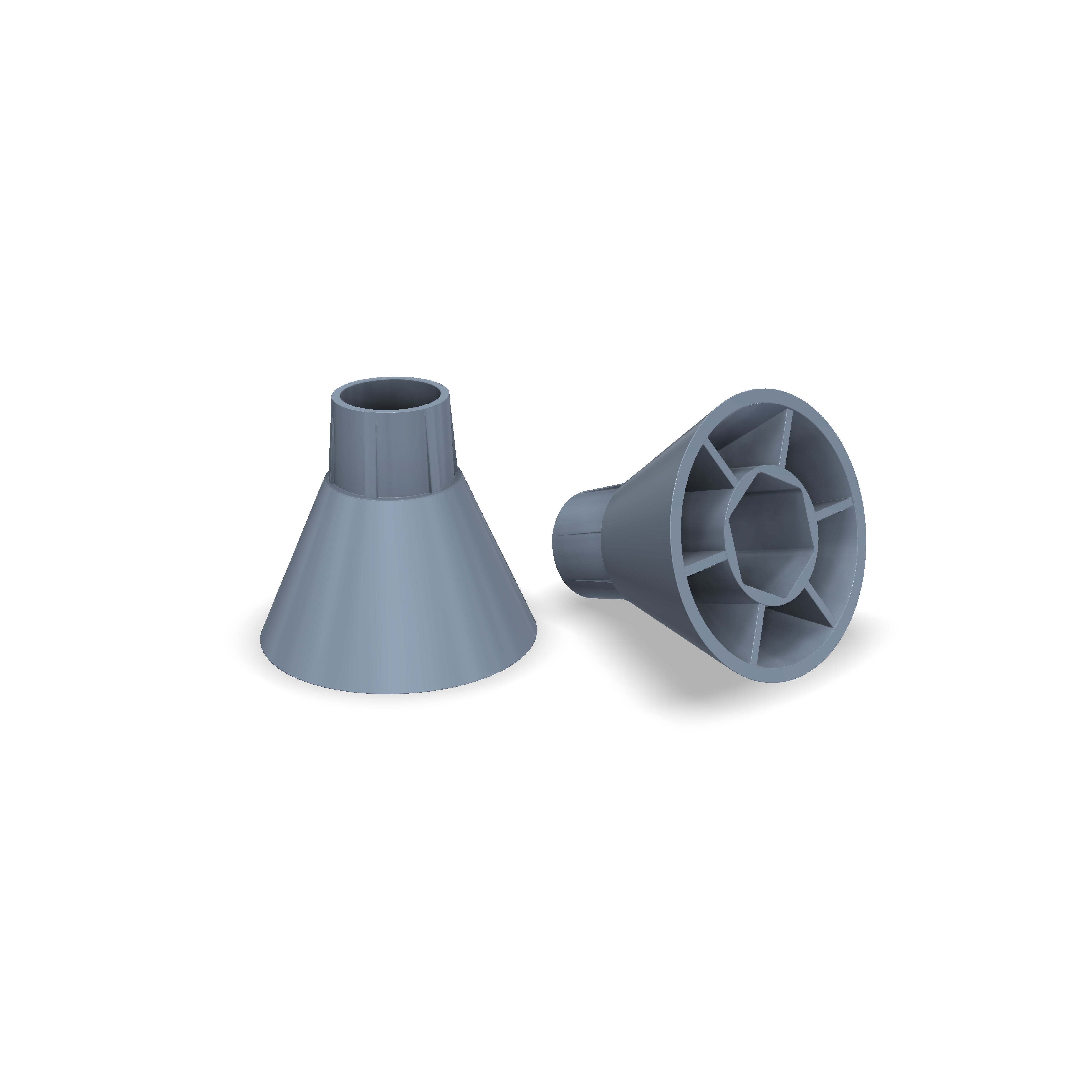

DP Cone 30 mm

Key Features

  • Designed for 22 mm tube ID / 25 mm tube OD

  • Deeper cone profile for improved finish

  • Supplied in packs of 500 pcs

  • Removable after casting

  • Ensures consistent and clean tie rod hole closure

Available Variant

  • 22 mm tube ID — 25 mm tube OD — 500 pcs/pack (Art. 039164)
