RCS Rail Climbing System: The universal modular system for a wide range of applications

RCS Rail Climbing System

The universal modular climbing system for a wide range of applications

The RCS combines the advantages of different climbing systems in a modular system and is used as climbing formwork as well as a climbing protection panel. Through rail-guided climbing, the climbing unit is securely connected to the building at all times which makes the climbing procedure fast and safe also in windy conditions. The units are moved by crane or by means of mobile climbing hydraulics to the next section. RCS is easily adapted to suit jobsite-specific requirements.

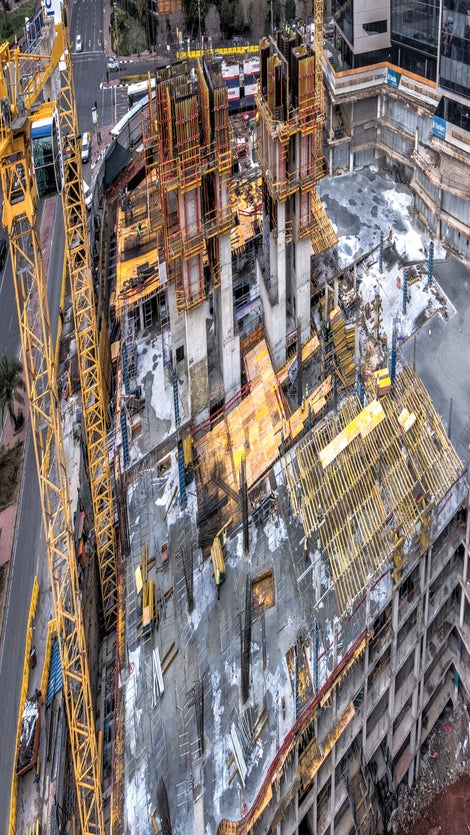

RCS Rail Climbing System in action

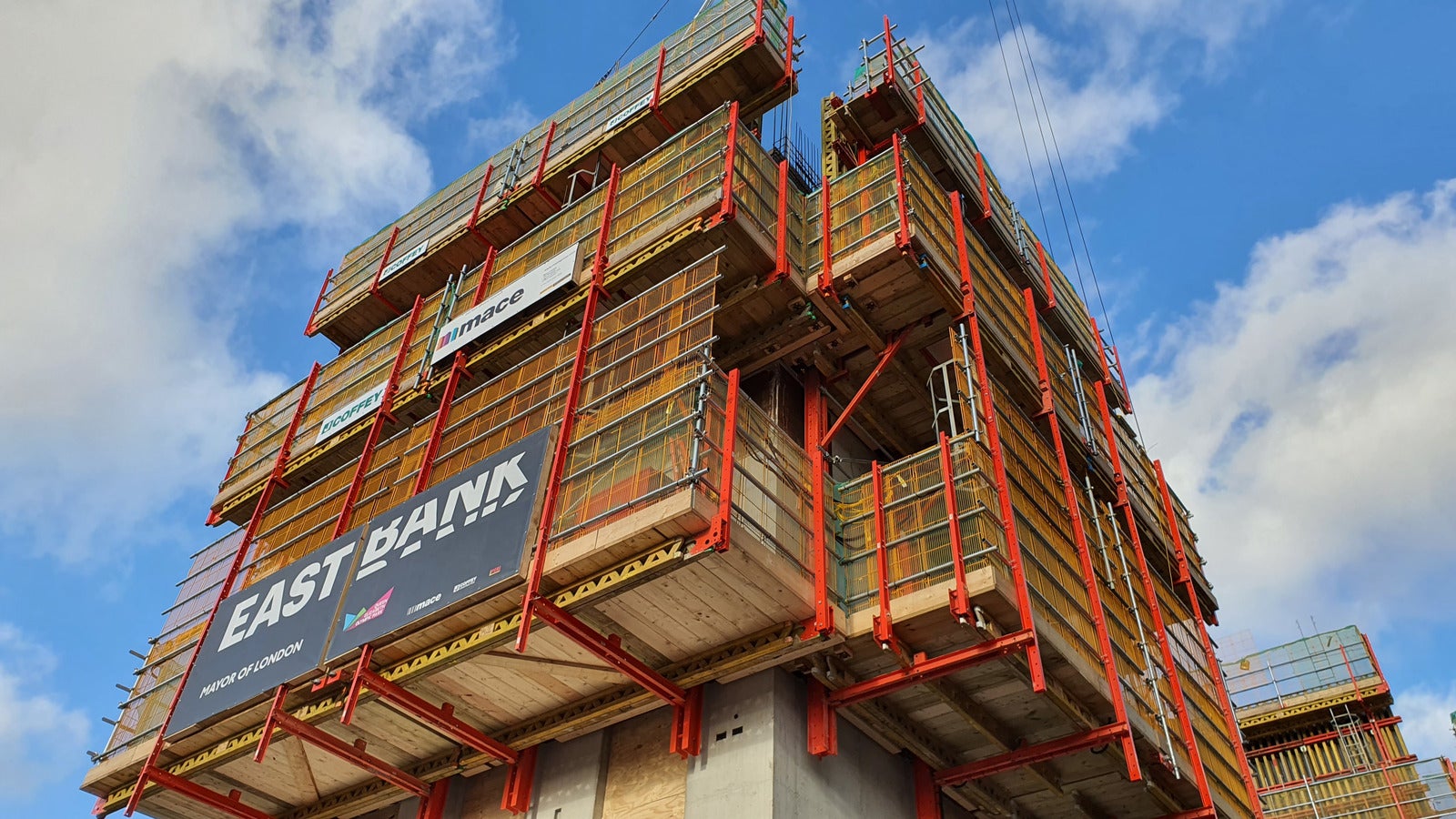

  • The moving unit is connected at all times to the building by means of a climbing shoe.
    Safe rail-guided procedure

    The moving unit is connected at all times to the building by means of a climbing shoe.



  • The climbing shoe can be attached to the walls as well as slab edges.
    Flexible mounting

    The climbing shoe can be attached to the walls as well as slab edges.

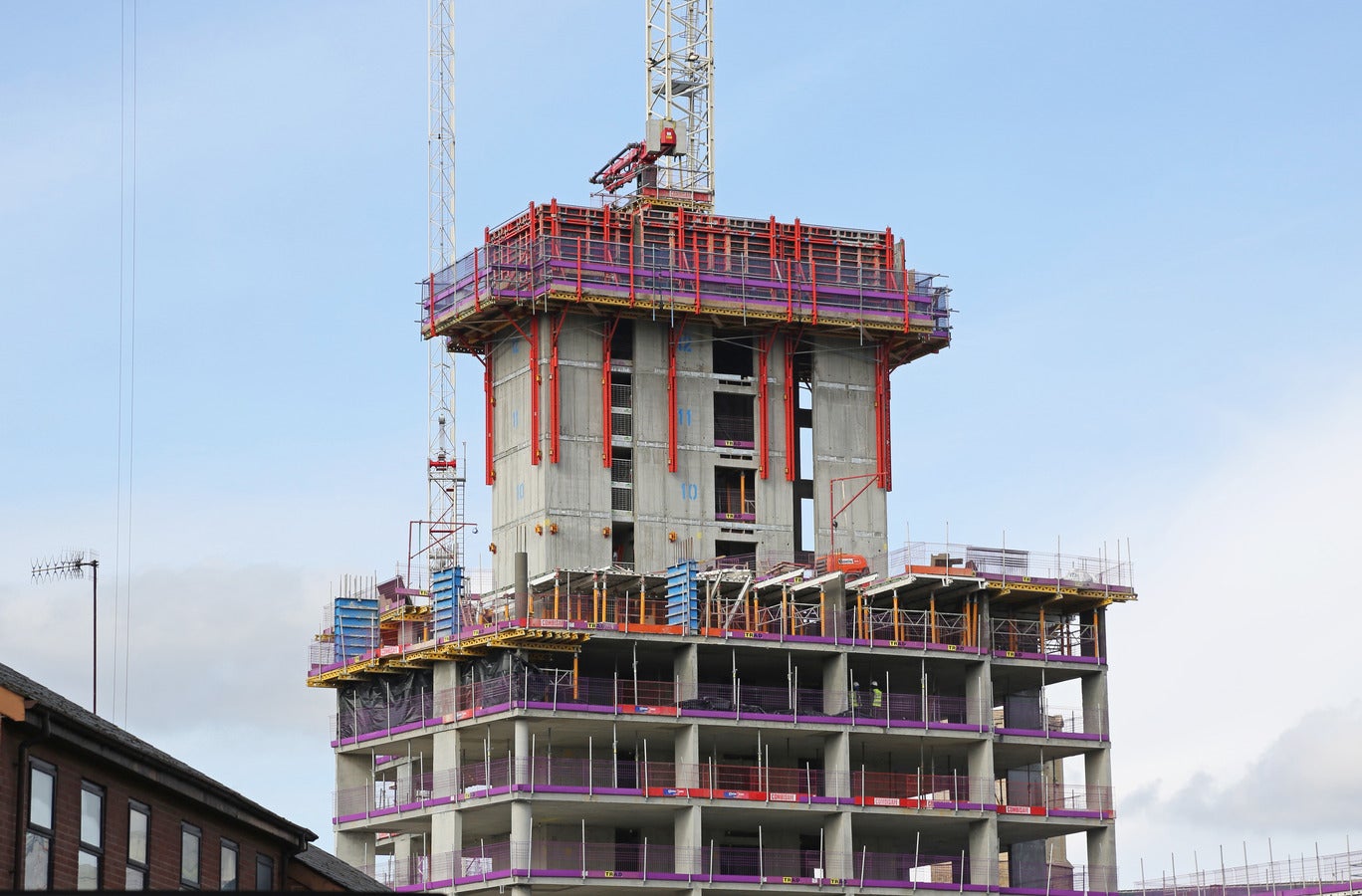

  • Due to the 125 mm hole arrangement of the climbing rails, the platforms can be optimally adapted to suit the respective storey heights.
    Variable assembly

    due to the 125 mm hole arrangement of the climbing rails, the platforms can be optimally adapted to suit the respective storey heights.





Variations

RCS C Formwork Scaffolding

as standard use for supporting wall formwork for storey heights of 2.70 m to 4.50 m; with carriage (90 cm retraction distance)

Light Climbing Formwork RCS CL

for external facades and cores in advance of medium-height buildings leading with limited crane capacities and times

RCS P Climbing Protection Panel and Guardrails

enclosure and guardrails provide gap-free protection for work carried out on the building shell floors
