All heights, all cross-sections, regardless whether square or rectangular-shaped

VARIO GT 24 Column Formwork

For continuously variable cross-sections, all heights and architectural concrete requirements

VARIO GT 24 is always a project-specific solution consisting of formwork girders, steel walers and any selected formlining. It can be adapted to suit every cross-section, concreting height and required fresh concrete pressure. Architectural concrete requirements can also be optimally fulfilled with VARIO GT 24.

VARIO GT 24 Column Formwork in action

  • to match rectangular and square column cross-sections of all sizes.
    Continuously adaptable

    to match rectangular and square column cross-sections of all sizes.

  • through project-specific constructions with any type of formlining.

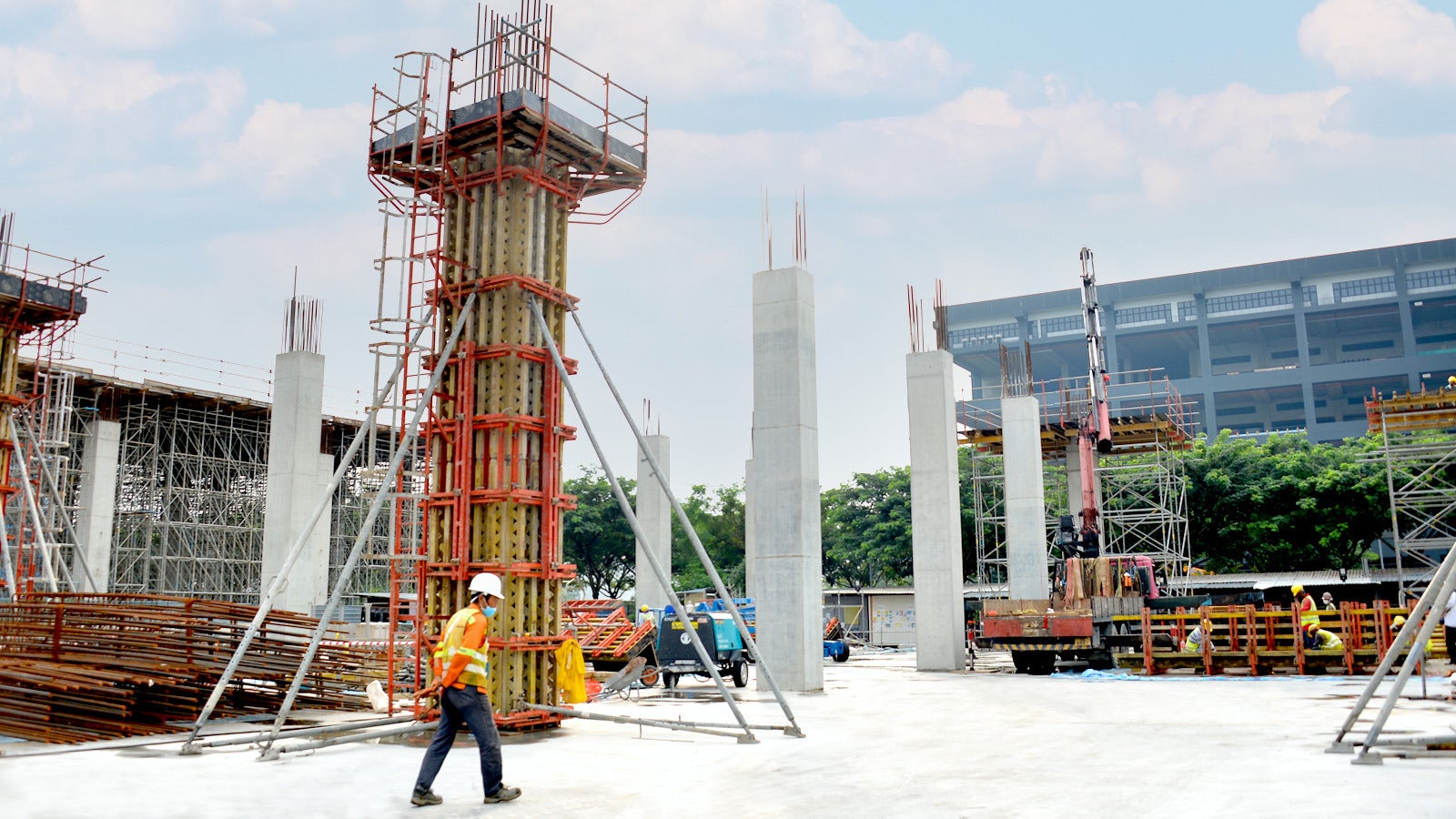

    For architectural concrete surfaces

    through project-specific constructions with any type of formlining.

  • through individual arrangements of formwork girders and steel walers.

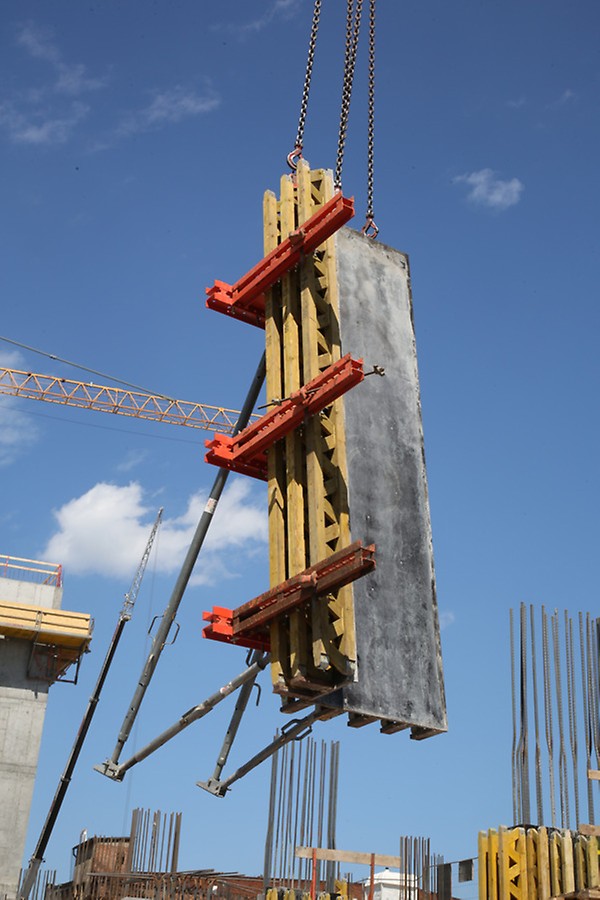

    For high concrete pressures

    through individual arrangements of formwork girders and steel walers.

Product Data Sheet

Technical specifications
System type
Column Formwork
Dimensions
Maximum element dimension: from 20 x 20 cm to 80 x 120 cm, in a 30 cm height grid,
Element heights: Freely selectable,
Realizable column cross sections: Rectangular, square, conical
Fresh concrete pressure
100kN/m²
Material
Wood and steel
Fulfilled standard
Line 7 according to DIN 18202
Technical specifications
System type
Column Formwork
Dimensions
Maximum element dimension: from 20 x 20 cm to 80 x 120 cm, in a 30 cm height grid,
Element heights: Freely selectable,
Realizable column cross sections: Rectangular, square, conical
Fresh concrete pressure
100kN/m²
Material
Wood and steel
Fulfilled standard
Line 7 according to DIN 18202
System accessory
Tie technology
DW 15 anchor technology for the guying on the outside corner
Safety
Scaffold bracket GB 80
System accessory
Tie technology
DW 15 anchor technology for the guying on the outside corner
Safety
Scaffold bracket GB 80
