VARIOKIT VCB Cantilever Bracket

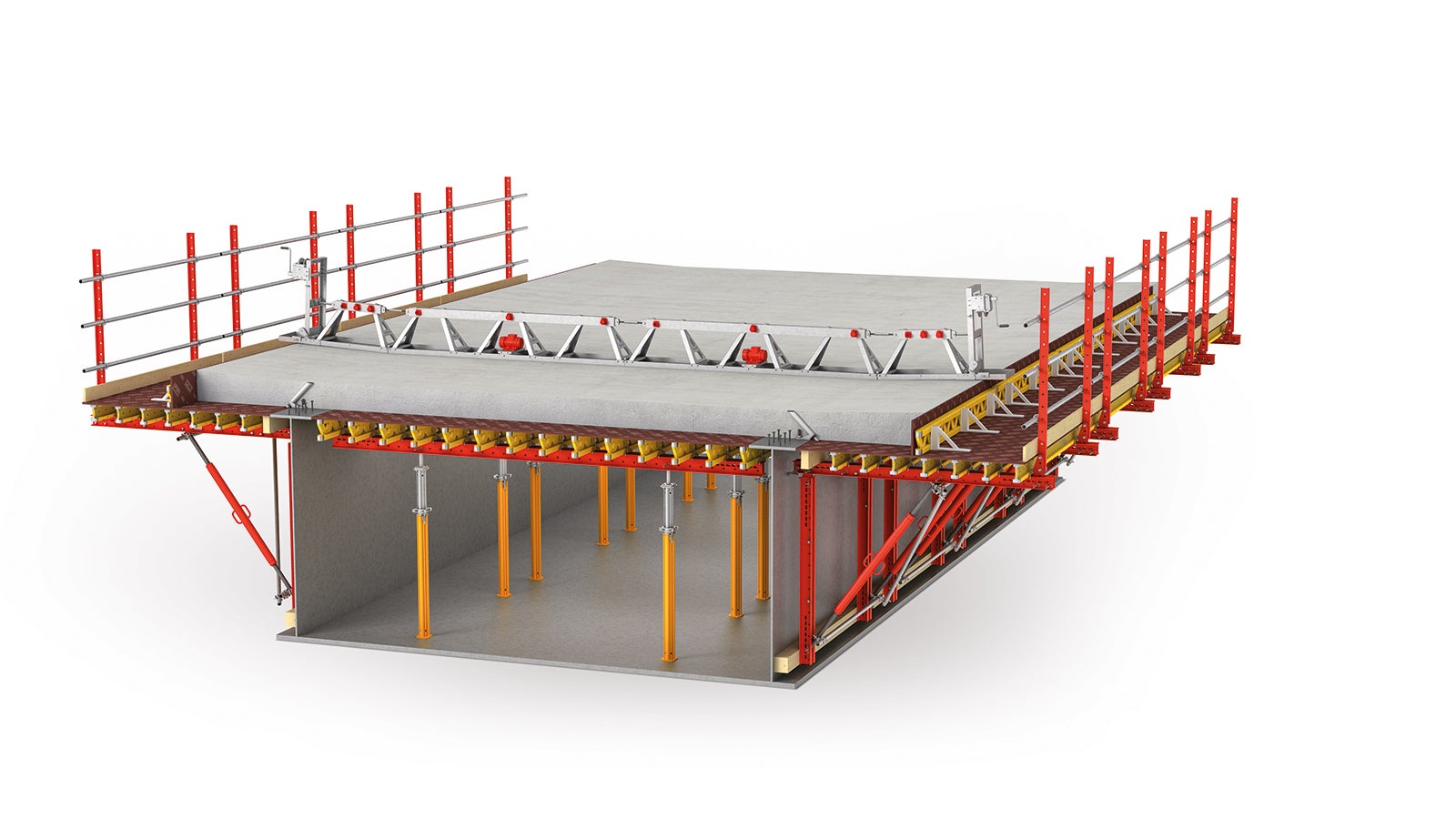

Scaffold-free cantilever formwork for steel composite and precast concrete bridges

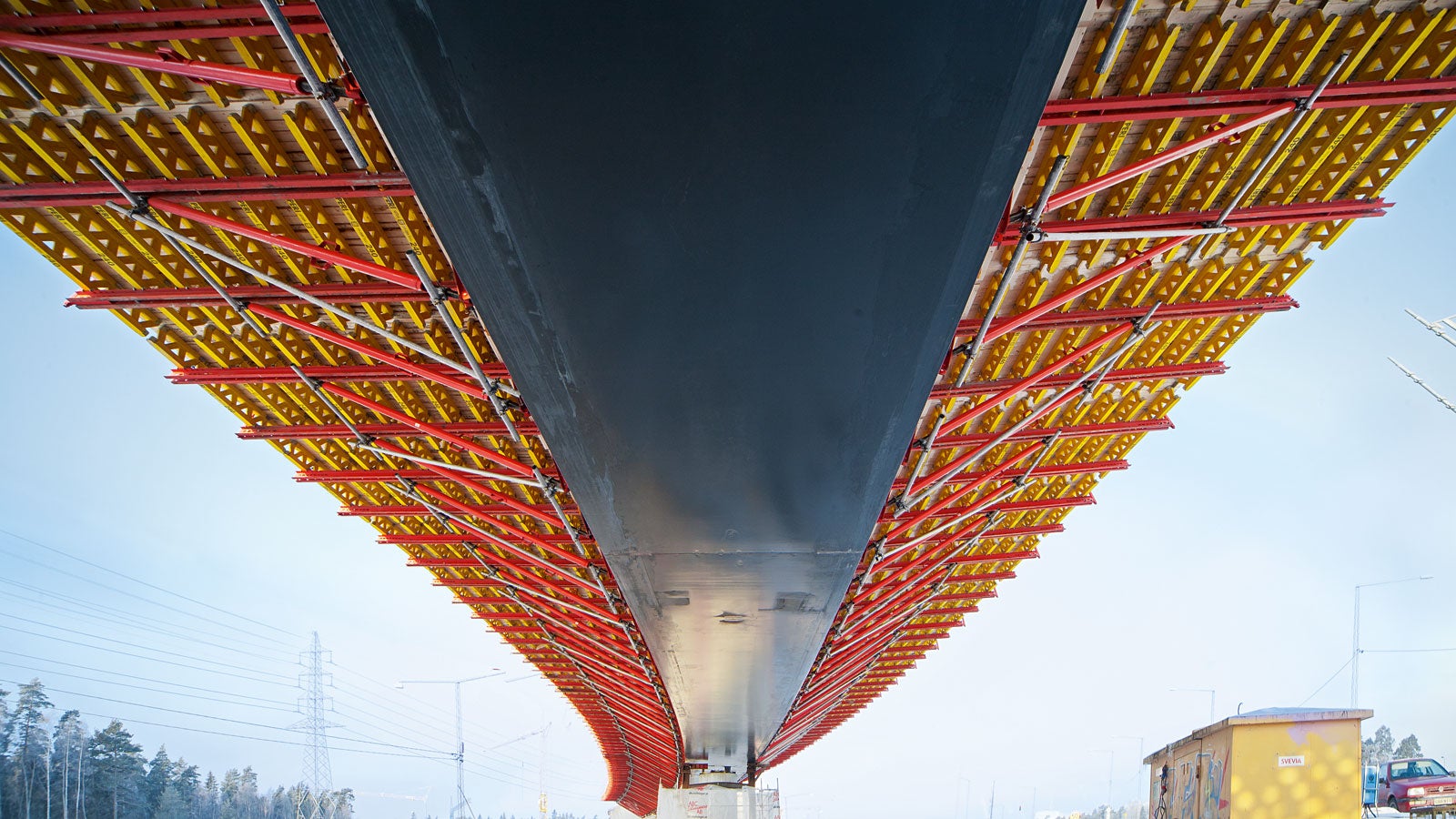

The VARIOKIT cantilever bracket VCB helps with the fabrication of bridge superstructures built according to the steel composite or semi-finished concrete element method. It is permanently fixed to the bridge structure and is moved by crane. Its main fields of application are usually bridges with a length up to 150 m, since a mobile solution is often not necessary in this case.

The completion of the VARIOKIT construction kit with some few anchoring parts leads to rentable solutions for many different applications. For example, the anchoring can be either operated from below or from above. Following the VARIOKIT principle, the construction components can be optimally loaded due to the selection of the influence width, with the aim of always finding the most cost-effective solution.
