The galvanized tubular steel slab prop from PERI with up to 50 kN load-bearing capacity

PEP Ergo Slab Props

High load-bearing capacity with low dead weight

PEP Ergo Props are mainly used for supporting slab formwork. Numerous practical features ensure fast and safe handling – this includes, for example, the Adjusting Nut indicating the direction or the ergonomic G-Hook which does not jam.
Galvanization guarantees a long service life. However, if a prop does get damaged during the tough everyday working operations on the jobsite, the inner and outer tubes can be replaced separately.

PERI PEP Ergo Props are characterized by a further increase in load-bearing capacity and numerous trend-setting detailed solutions with low dead weight.

The capacity factor – defined as the load-bearing capacity to prop weight ratio – can reach up to 70 % above the values of comparable slab props. PERI PEP Ergo Props fully comply with Load Class B, D and E of EN 1065. The maximum load-bearing capacity is 50 kN.

The complete galvanisation of all surfaces guarantees a long service life.


PEP Ergo Slab Props in action

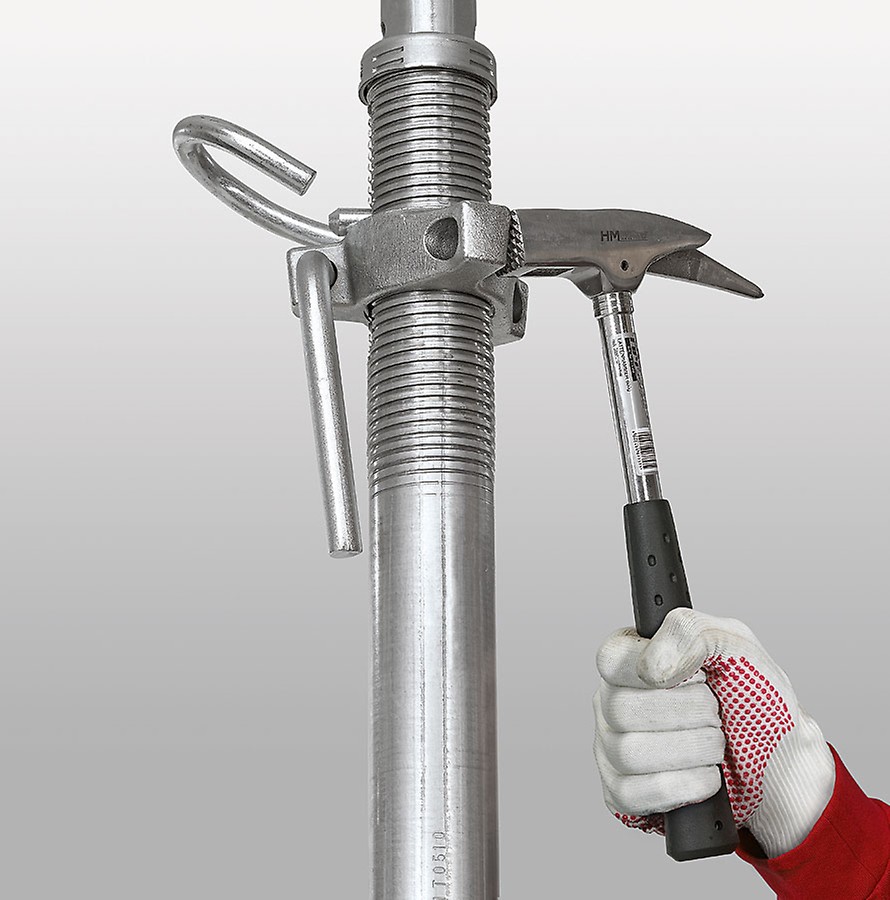

  • The shape of the lowering nut shows the direction for lowering when under load and allows damagefree and gentle lowering of materials.<br/>
    Trendsetting adjusting nut

    The form of the lowering nut dictates the direction of lowering the load while the captive handgrip allows easy adjustment.

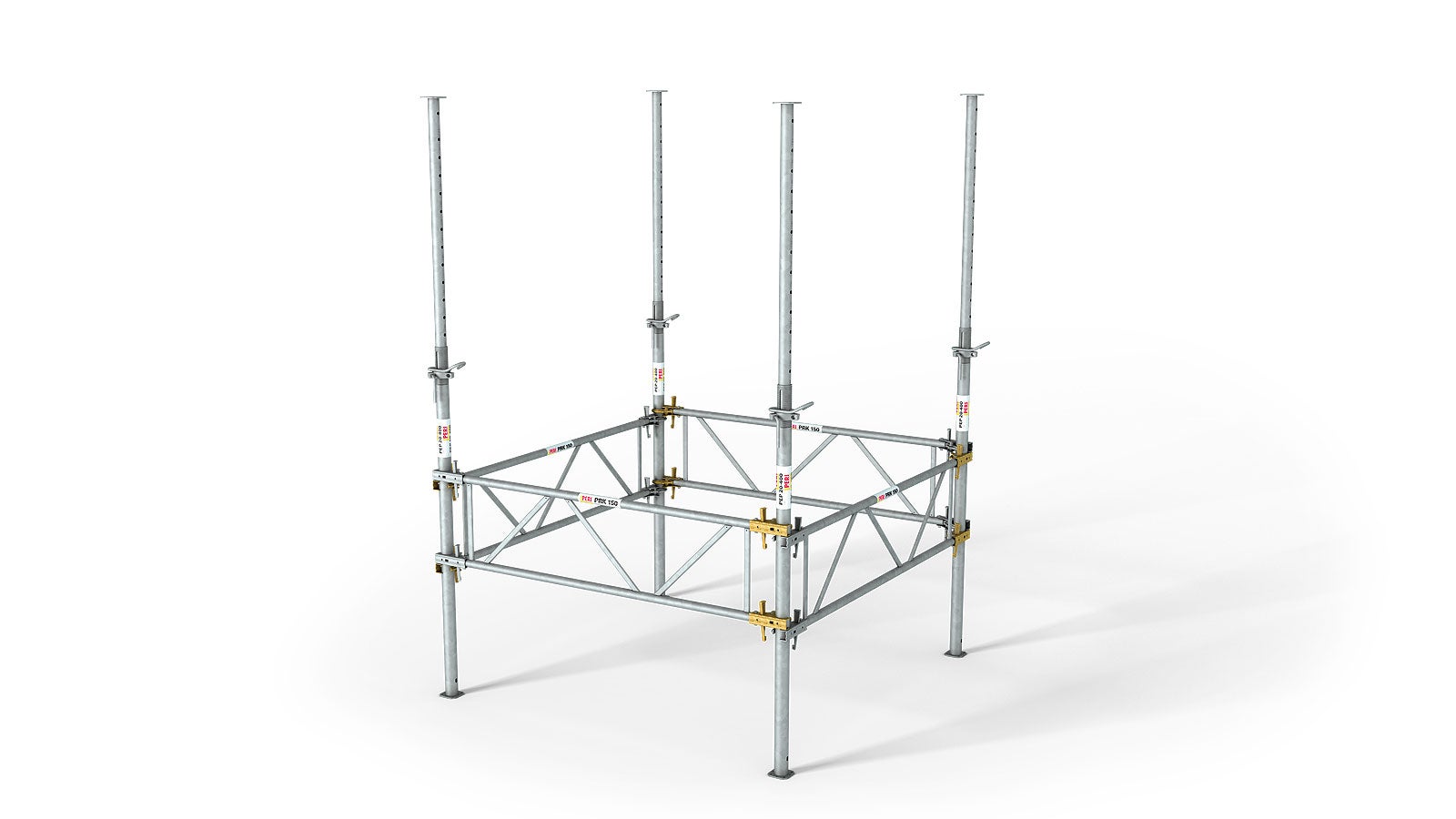

  • In addition to the tripod, the PRK frame can be used as an assembly aid.<br/>
    High-load bearing capacity & easily adjustable

    The 12 cm long adjustment range eliminates frequent re-positioning whilst the measuring scale on the inner tube accelerates length pre-adjustments.

    Prop load up to 50 kN – with a comparatively low dead weight
    (PEP Ergo E-300+: G = 19.3 kg; max. F = 50.4 kN).

  • The galvanized tubular steel slab prop from PERI with up to 50 kN load-bearing capacity
    Simple connections


    Prop heads can be attached to both the inner and outer tubes
