TRIO is a universal formwork system which places the highest emphasis on uncomplicated forming operations and the reduction of shuttering times.

TRIO Panel Formwork

The proven, universal panel formwork with only one connecting part

The focus of the universal TRIO Wall Formwork is on ensuring simple shuttering procedures and reduced shuttering times. Standard panels have only 6 different widths which allow easy handling and efficient logistics. With the BFD Coupler for all connections and many other practical system solutions, TRIO has successfully proven itself in countless projects worldwide.

TRIO is very versatile and efficient in its use - from residential construction and multi-storey structures to applications in infrastructure projects. This ensures a high degree of utilisation and thus the system's cost-effectiveness. Variants of the panel formwork, e.g. the aluminum version or for special surfaces, expands the range of applications. The closed panel profiles of the TRIO provide high torsional stability. The excellent product quality guarantees a long service life. For all applications, TRIO fulfils the highest requirements regarding evenness.


Extended programme

TRIO Aluminium

Lightweight formwork for crane-independent working; easily distinguishable by its yellow powder coating

TRIO Structure

TRIO panels with a free choice of formlining for special concrete surface requirements – supplied already pre-assembled

TRIO shaft element

With the TRIO shaft element, complete shaft internal formwork can be moved quickly; the all-round striking clearance is 30 mm.

MXK Bracket System

The MXK Bracket System serves as a working platform on MAXIMO and TRIO. The modular design and lightweight, manually-assembled system components ensure fast installation and a high level of costeffectiveness. In contrast to conventional solutions, the modular system provides pre-assembled individual components, e.g. the MXK Scaffold Deck or PROKIT PMB Side Mesh Barrier.


TRIO Panel Formwork in action

  • The climbing shoe can be attached to the walls as well as slab edges.
    Fast working operations

    with only a minimum of panel widths as well as panels that can be used both horizontally and vertically.

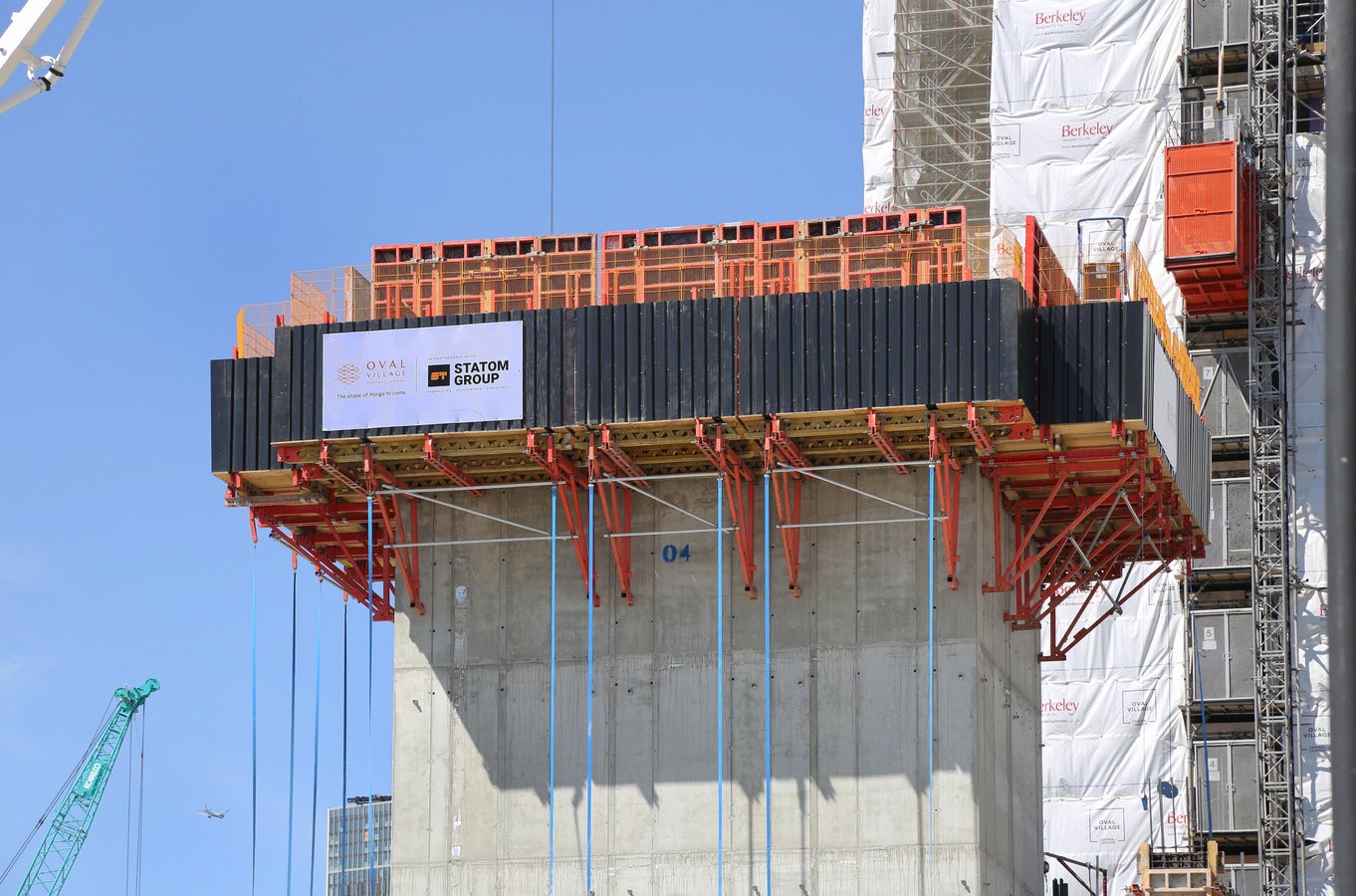

  • Large-area shuttering with standard panels up to 3.30 m x 2.40 m - providing a high level of surface evenness and only 2 tie positions.
    Large-area shuttering

    with standard panels up to 3.30 m x 2.40 m - providing a high level of surface evenness and only 2 tie positions.





  • Easy and simple connections with the BFD Alignment Coupler as the only component for all panel connections.
    Easy and simple connections

    with the BFD Alignment Coupler as the only component for all panel connections.





Product Data Sheet

Technical specifications
System type
Panel Formwork
Fresh concrete pressure
80 kN/m²
Material
Steel and aluminium
Anti-corrosion and surface coating
High level of corrosion protection thanks to galvanizing and powder coating on the inside
Load
Tensile and compressive force: (fresh concrete pressure according to DIN 18218 - evenness according to DIN 18202) | 67.5 kN/m² - line 7 (hydrostatic pressure) | 56.0 kN/m² - line 7 (constant pressure) | 81.0 kN/m² - line 6 (constant pressure)
Other
Powder coating of the element frames prevents concrete from sticking and makes cleaning easier.

Technical specifications
System type
Panel Formwork
Fresh concrete pressure
80 kN/m²
Material
Steel and aluminium
Anti-corrosion and surface coating
High level of corrosion protection thanks to galvanizing and powder coating on the inside
Load
Tensile and compressive force: (fresh concrete pressure according to DIN 18218 - evenness according to DIN 18202) | 67.5 kN/m² - line 7 (hydrostatic pressure) | 56.0 kN/m² - line 7 (constant pressure) | 81.0 kN/m² - line 6 (constant pressure)
Other
Powder coating of the element frames prevents concrete from sticking and makes cleaning easier.
Show More
Show Less

Additional information

TRIO is a universal formwork system which places the highest emphasis on uncomplicated forming operations and the reduction of shuttering times.
TRIO is a universal formwork system which places the highest emphasis on uncomplicated forming operations and the reduction of shuttering times.

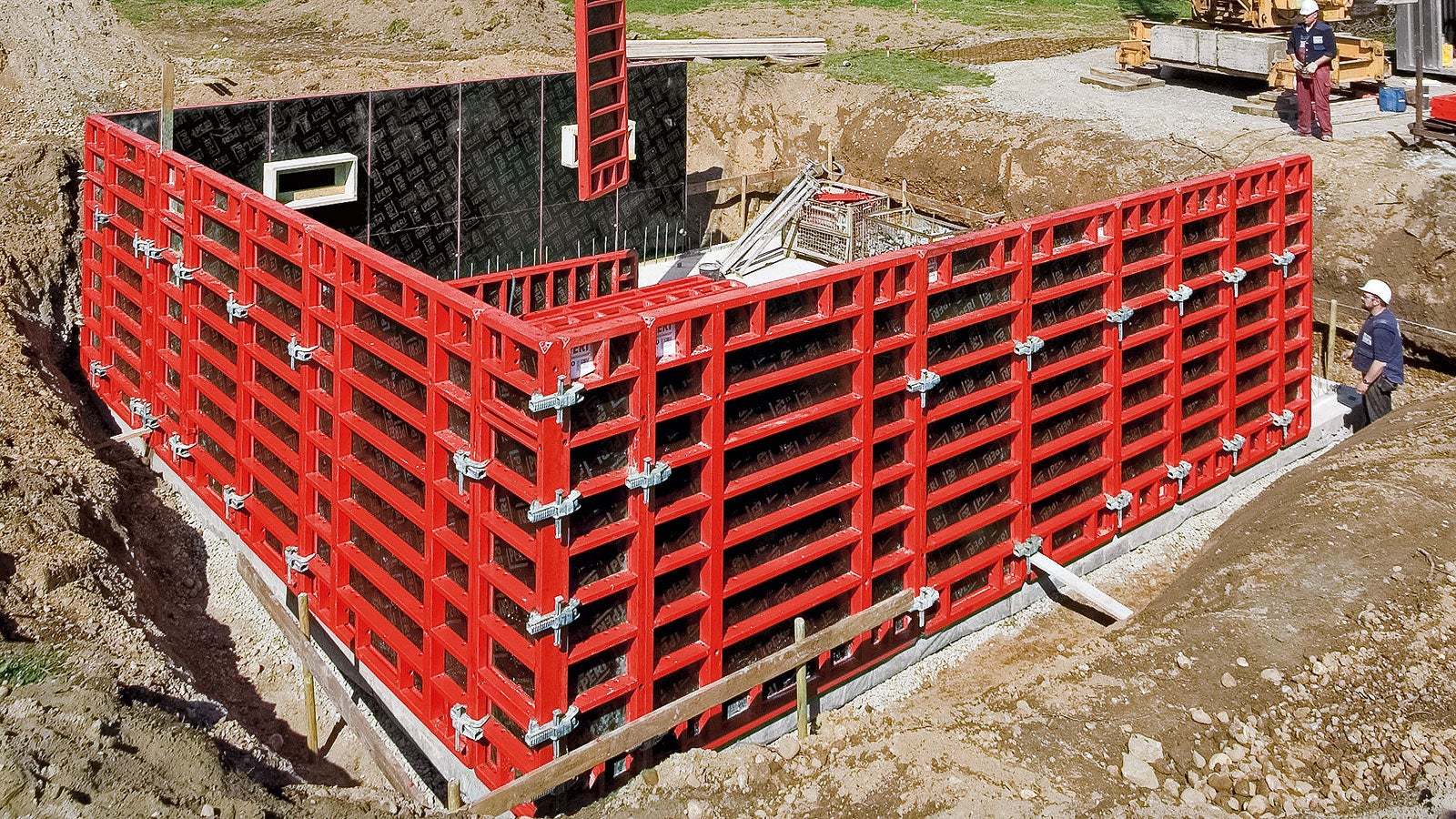

Few different components and, in particular, the universal BFD alignment coupler which can be operated with one hand, ensure quick and easy forming operations with TRIO.
Few different components and, in particular, the universal BFD alignment coupler which can be operated with one hand, ensure quick and easy forming operations with TRIO.

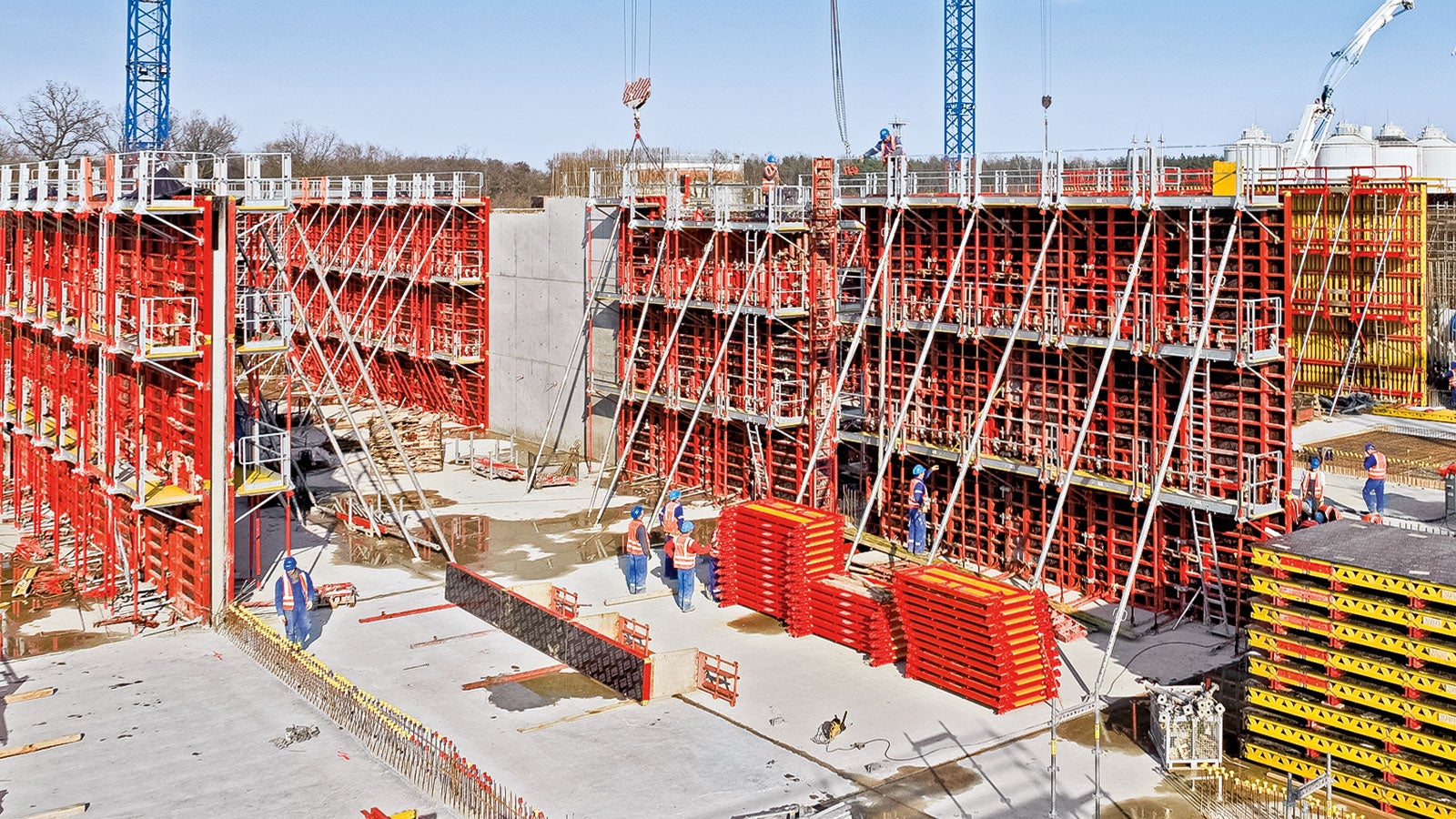

Equipped with platform systems, TRIO provides maximum safety for the construction team. Complete largearea moveable units with working platforms, access ladders and guardrails are moved from cycle to cycle.
Equipped with platform systems, TRIO provides maximum safety for the construction team. Complete largearea moveable units with working platforms, access ladders and guardrails are moved from cycle to cycle.

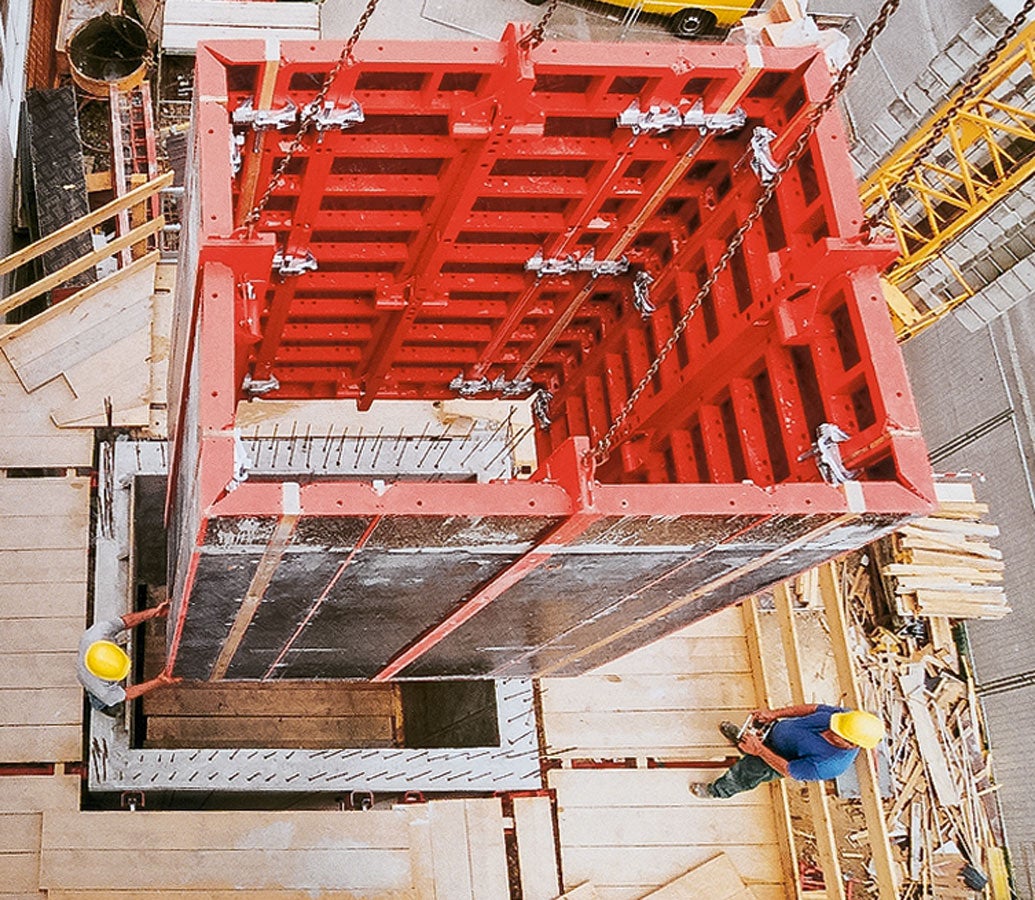

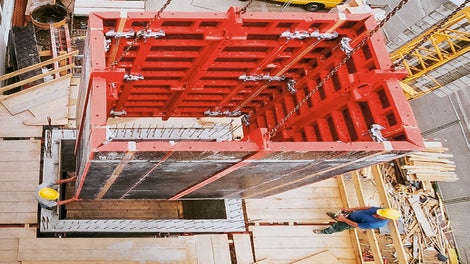

The TRIO shaft element for quickly moving complete sets of shaft internal formwork: by pulling the shaft corners, this results in a striking clearance of 30 mm, and the unit can be moved in one crane lift.
The TRIO shaft element for quickly moving complete sets of shaft internal formwork: by pulling the shaft corners, this results in a striking clearance of 30 mm, and the unit can be moved in one crane lift.

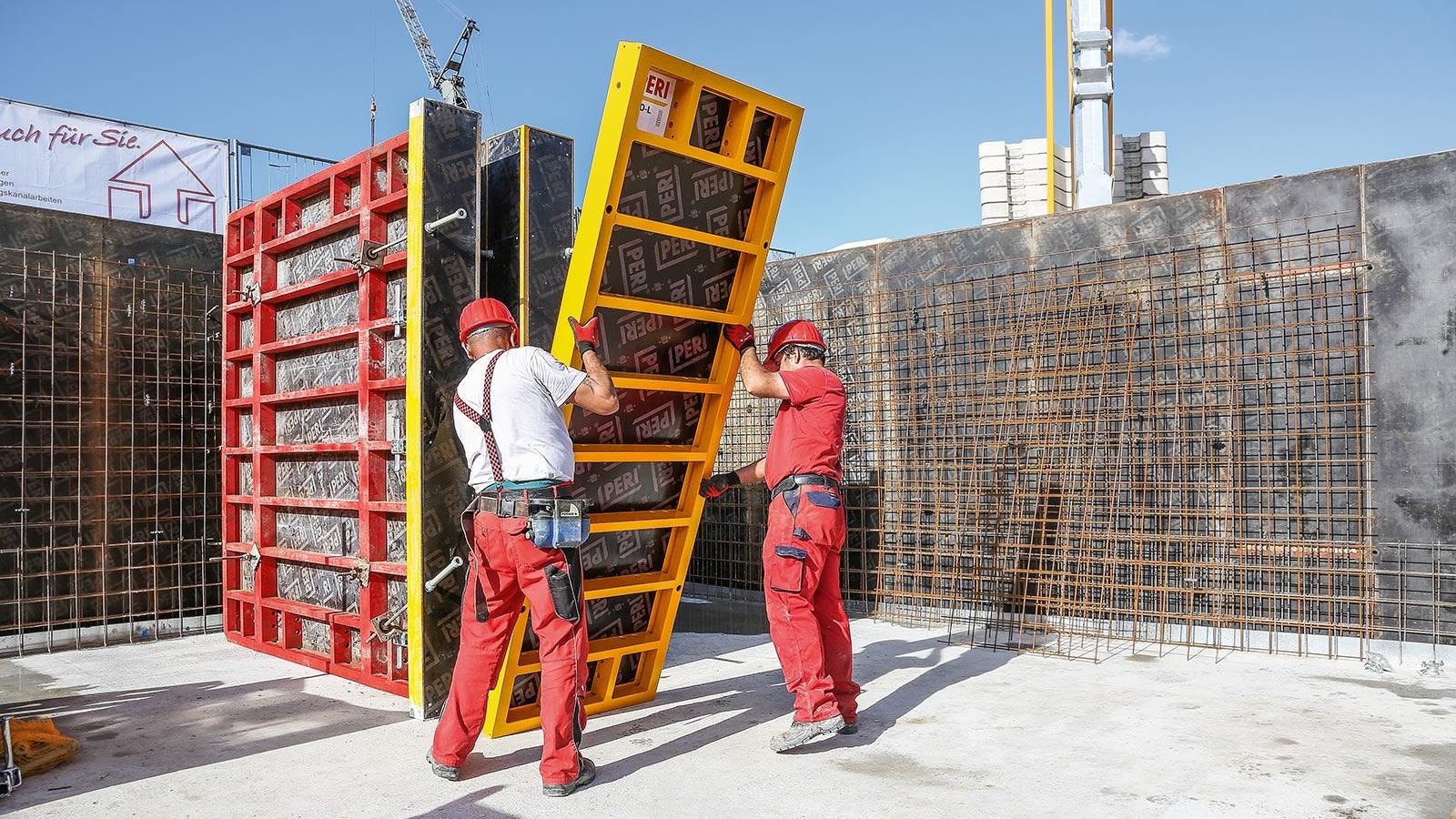

The aluminium TRIO panel elements are yellow powder-coated; they can easily be moved by hand.
The aluminium TRIO panel elements are yellow powder-coated; they can easily be moved by hand.

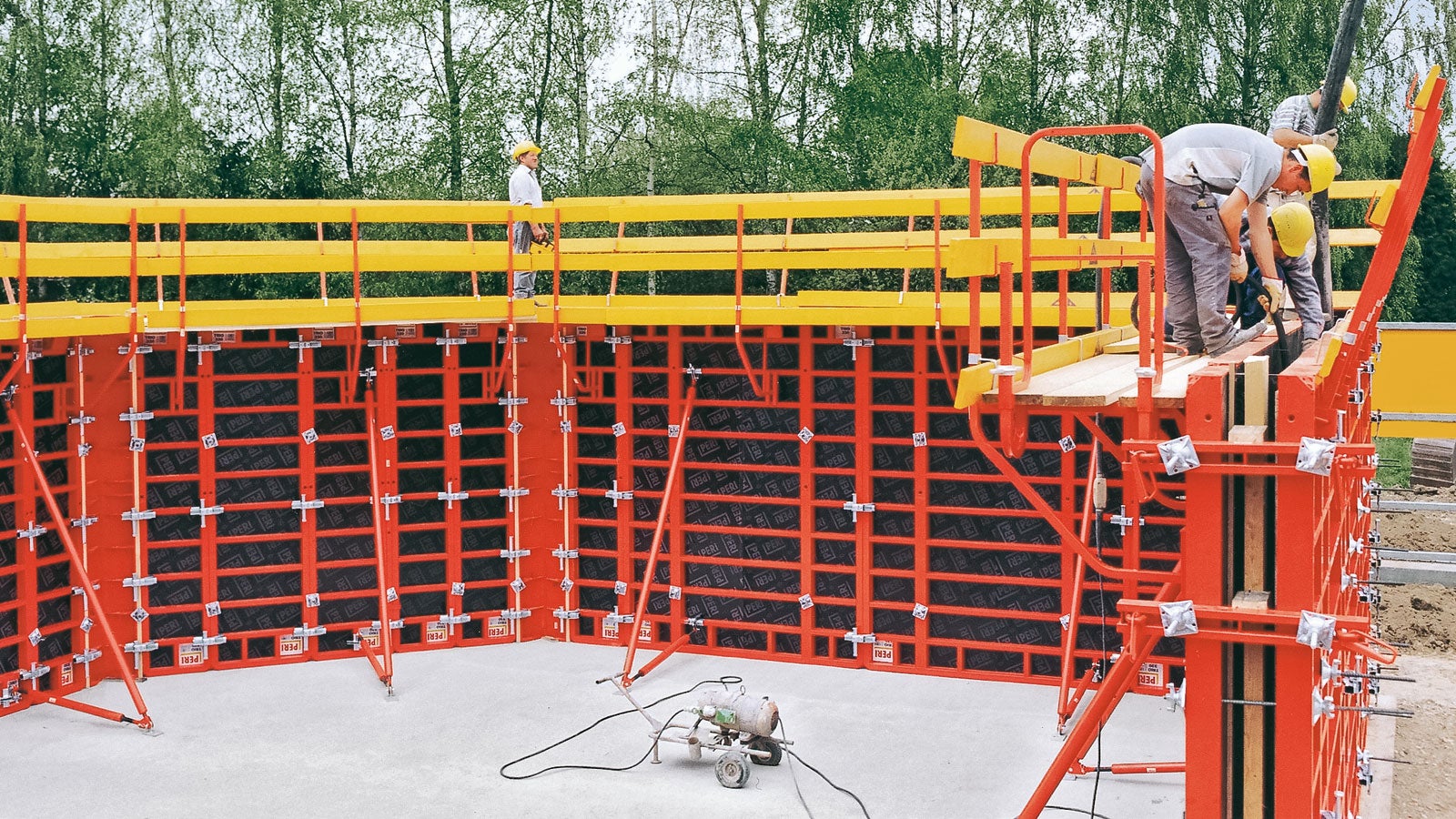

Wall heights up to 3.30 m can be formed with TRIO 330 without any height extensions and with only two tie positions. The 3.30 m high panel can also be combined with the 2.70 m version.
Wall heights up to 3.30 m can be formed with TRIO 330 without any height extensions and with only two tie positions. The 3.30 m high panel can also be combined with the 2.70 m version.
TRIO is a universal formwork system which places the highest emphasis on uncomplicated forming operations and the reduction of shuttering times.
Few different components and, in particular, the universal BFD alignment coupler which can be operated with one hand, ensure quick and easy forming operations with TRIO.
Equipped with platform systems, TRIO provides maximum safety for the construction team. Complete largearea moveable units with working platforms, access ladders and guardrails are moved from cycle to cycle.
The TRIO shaft element for quickly moving complete sets of shaft internal formwork: by pulling the shaft corners, this results in a striking clearance of 30 mm, and the unit can be moved in one crane lift.
The aluminium TRIO panel elements are yellow powder-coated; they can easily be moved by hand.
Wall heights up to 3.30 m can be formed with TRIO 330 without any height extensions and with only two tie positions. The 3.30 m high panel can also be combined with the 2.70 m version.
